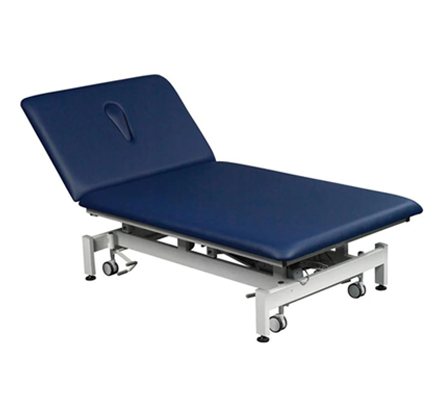

WIDE NEUROLOGY TWO SECTION ELECTRIC COUCH

WIDE NEUROLOGY PLINTH

Share
Category

    The classic dual life wide neurology couch is probably the most stable and rigid couch currently available. Featuring a large upholstered top and an exceptional low operation height, 46cm (18”) yet still allowing clearance for mobile hoist procedures. Single motor with dual Gas spring on head section.

    FEATURES Linak motor and air spring which makes the bed steady and safe. STABILUS Germany air spring which makes the operation flexibly. High elasticity sponge which makes the bed steady. Durable Antiflaming and antibiosis leather. Easy and convenient to be fastened and unlocked.

    STANDARD FEATURES •
    Twin lift design
    • Positive/negative head section
    • Retractable wheels as standard
    • Breathing hole and plug as standard
    • Electric Hi Lo operation by hand / foot control
    • Sleek design with Rigid frame and rounded edges for safety
    • Minimum height 46cm to maximum height 91cm
    • Adjustable head section by dual gas struts from -20o to +80o
    • Head section has face hole and plug
    • Adjustable feet for uneven surfaces
    • 7.5cm castors for safety and mobility
    • Retractable dual locking castors on all 4 corners
    • Padding thickness

    MODEL No. TAB 200W – 100cm Wide

    MODEL No.

    TAB 200W

    Adjustable Height

    460mm / 18.1” to 910mm / 35.8”

    Cushion width :

    100CM

    Head section length :

    650mm

    Mid Section Length :

    0

    Leg Section Length :

    130mm / 26.8”

    Total Length :

    1955mm / 77”

    Head tilt angles :

    +87” to -35”

    Leg Tilt Angles :

    +20˚ to -29˚

    Lift mechanism :

    Electric / Hydraulic

    Breathing hole :

    1

    Retractable wheels Standard

    x 4

    Weight rating :

    225kg / 496lba

    Upholstery colours

    Blue, Orange, Red
